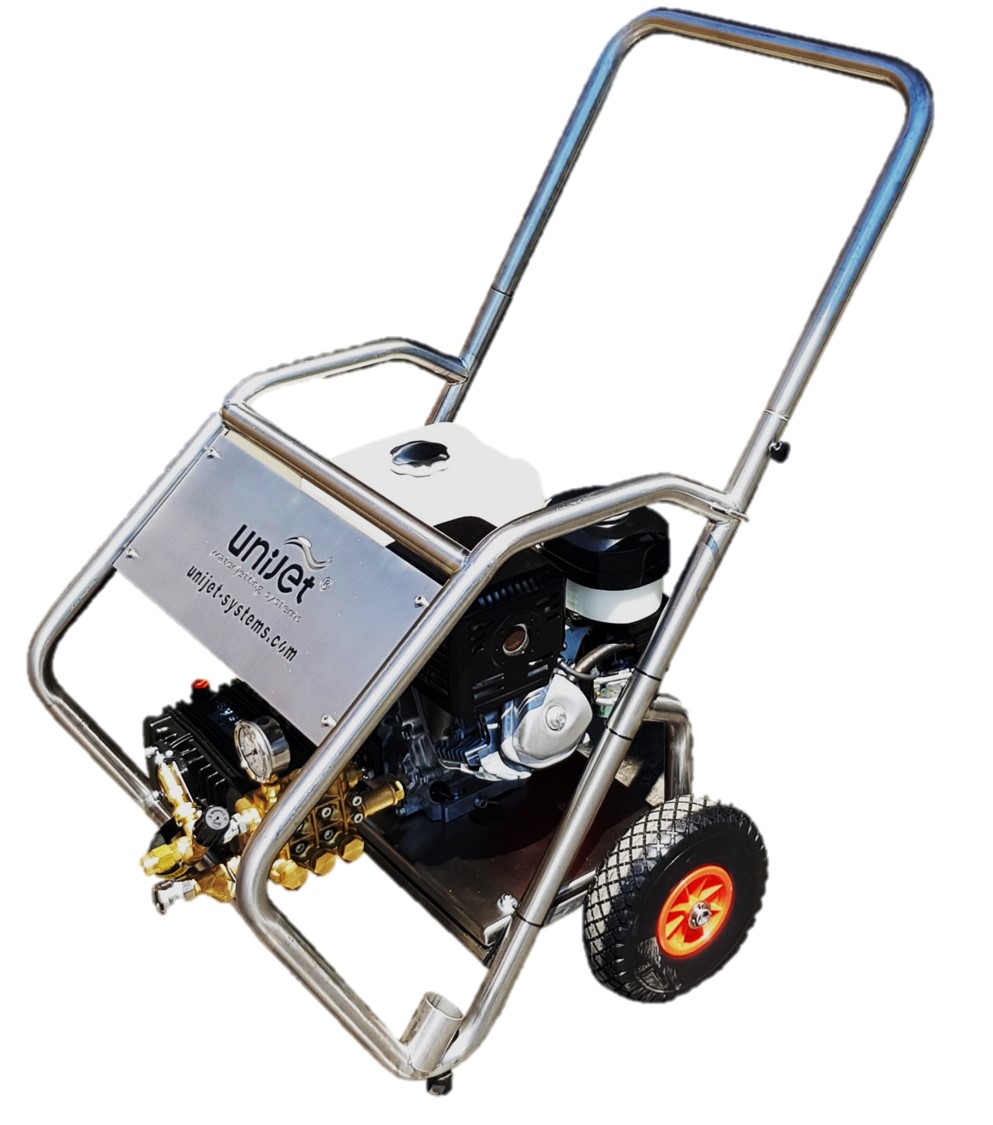

Unijet G 300 Bar - 15 Lpm ECO

Waterjetting unit with sandblasting and hot water compatibility up to 300 bar, driven by a gasoline engine for the Shipping, Industrial and Construction sector, ecologically friendly.

Unijet waterjetting applications up to 300 Bar:

  • Deep cleaning of buildings, costruction equipment and machinery.
  • Rock marble and sidewalk cleaning, old plaster removal,
  • Remove products built up (cement, etc) on hoppers and handling equipment.
  • Removal of old paints and graffiti on walls with sand blasting attachment.



Technical Characteristics

Engine design:

  • Four-stroke air cooled OHV petrol Honda engine
  • Engine 90° V-twin design
  • Horizontal shaft
  • Cast iron sleeve

Pump design:

  • Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
  • Pump max. water temperature at 45˚C
  • Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)
  • Thermal valve
  • Pump oil level indicator

High pressure unit design:

  • Stainless steel 304L frame
  • Shock absorbing anti-vibration mounts
  • High pressure gauge for visual pressure monitoring with pressure snubber, absorbing vibration shocks and providing more accurate pressure readings
  • 10-micron inlet water filter for long service life of the pump
  • Certification of 45’ machine test run on max. operating pressure



Model 300G15 JET ECO
Max. operating pressure 300 bar
Max. water flow rate 15 lpm
Engine output power HONDA 13 HP / 10 KW
Plunger material Ceramic
Pump head material Hardened brass
Motor speed 3600 rpm
Crankshaft speed 3600 rpm
Weight 79 Kg
Dimensions
92x75x72 cm



The unit comes with the following equipment (standard configuration):

  • High pressure gun
  • 70cm high pressure lance
  • Flat jet nozzle
  • 10m high pressure hose 400 bar
  • Manual book



1 YEAR UNIT GUARANTEE
