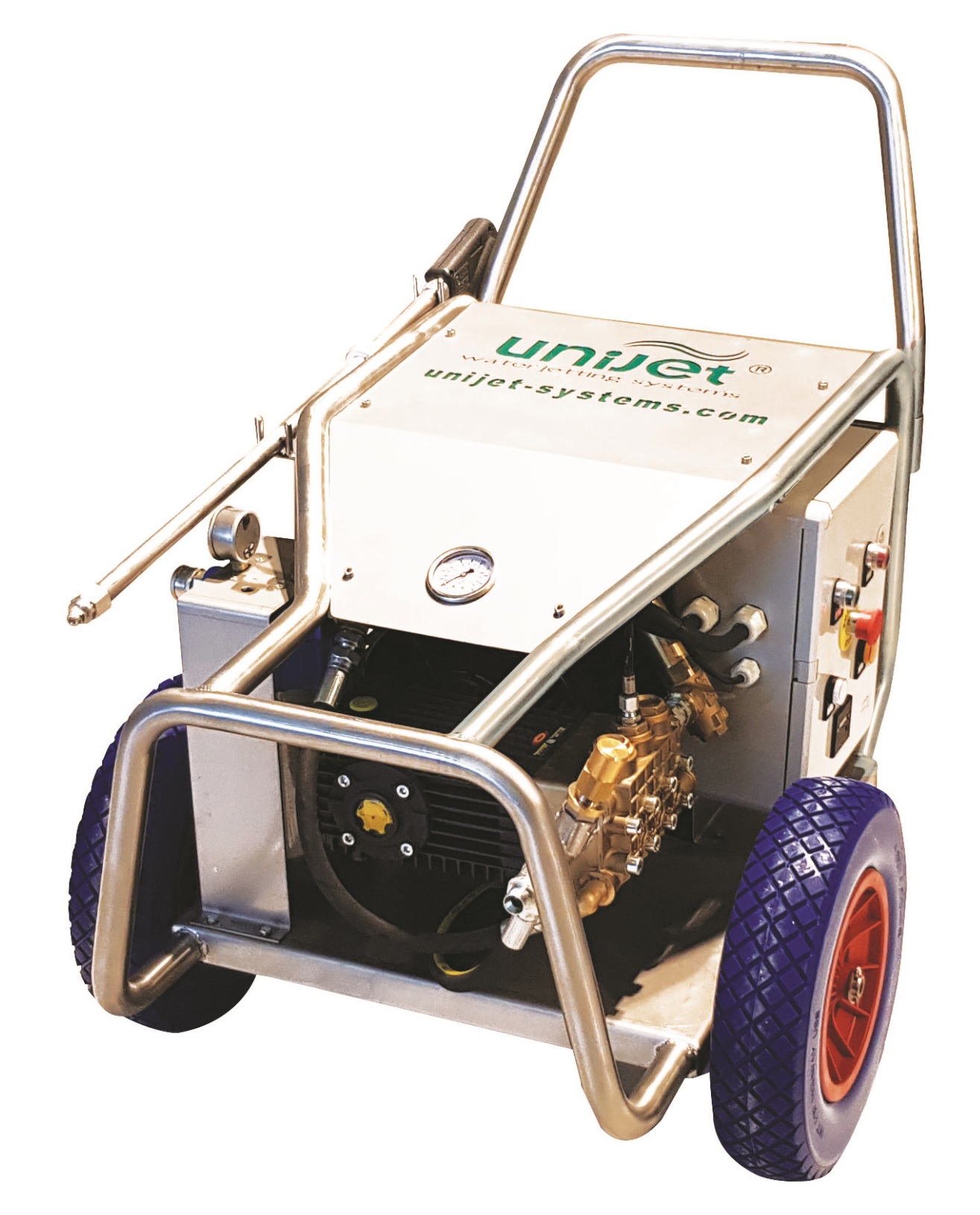

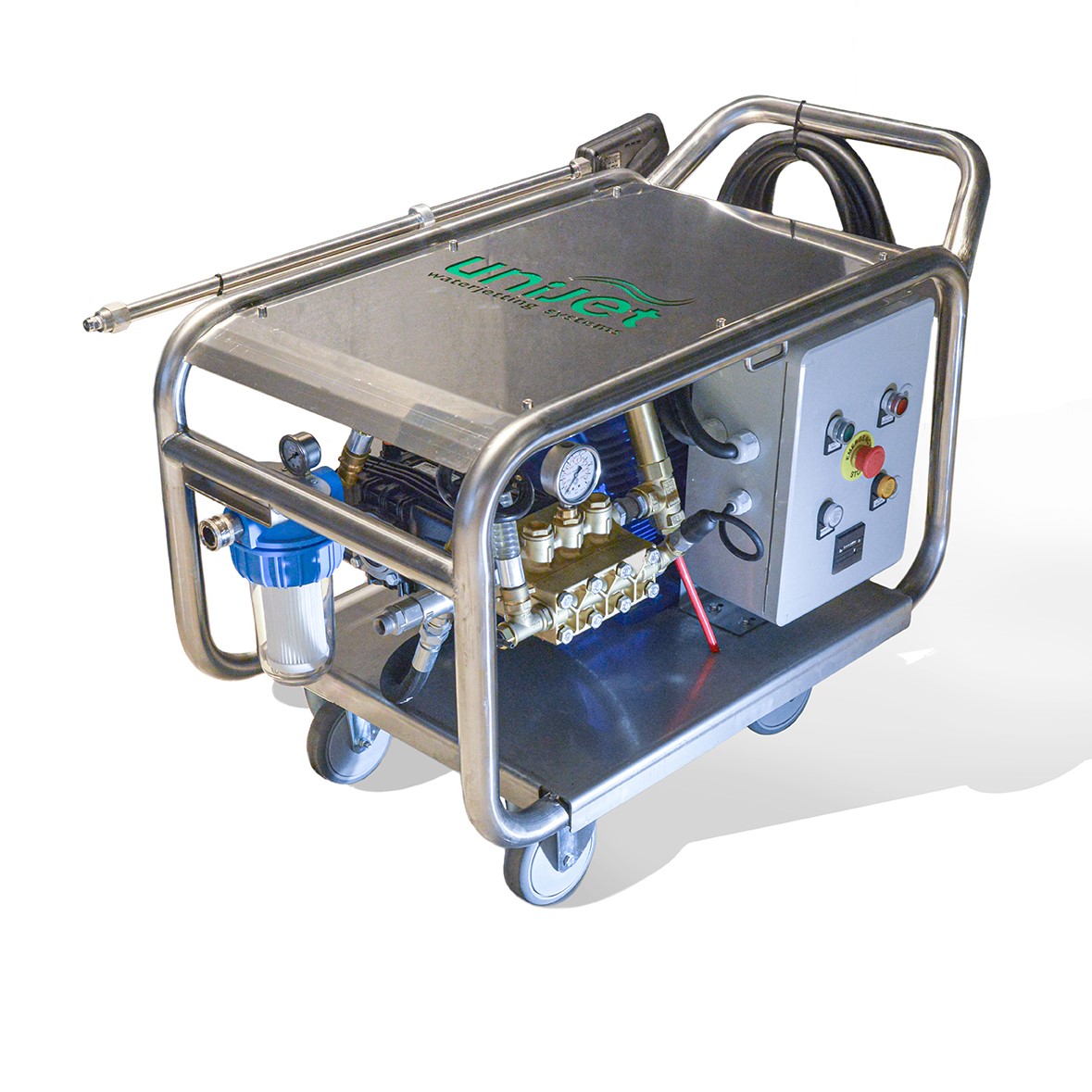

Unijet E 500 Bar - 15 Lpm

Waterjetting unit with sandblasting equipment and hot water compatibility up to 500 bar, driven by an electric motor for the shipping, industrial and construction sector.



Unijet waterjetting applications up to 500 Bar:

  • Cleaning shuttering and scaffolding, roofs and road markings.
  • Cleaning heat exchangers, oil-drilling installations, dock installations, pipelines and ships in general.
  • Removal of rust and all types of residues and chemicals on tanks, drums, mills and containers.
  • Removal of filling materials from expansion joints.
  • Surface preparation by removal of excess coatings and silos from bunkers.
  • Capability of blasting underwater.

Technical Characteristics

  • Stainless steel 304L frame
  • IP55 electric motor
  • Motor efficiency class IE2
  • Automatic star delta starter
  • Direct drive pump
  • Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
  • Pump oil level indicator
  • Pump max. water temperature at 45˚C
  • Thermal valve
  • Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)
  • Safety valve (set 10% above operating pressure) for pump protection against overpressure
  • 10-micron inlet water filter for long service life of the pump
  • Inlet pressure switch against poor water flow
  • High pressure gauge for accurate display readings
  • Certification of 45’ machine test run on max. operating pressure



Model 500E15 JET
Max. operating pressure 500 bar
Voltage 380 – 440 V
Frequency 50 - 60 Hz
Max. water flow rate 15 lpm @380V
18 lpm @440V
Motor output power 15 KW / 20 HP
Plunger material Ceramic
Pump head material Hardened brass
Motor speed 1450 rpm
Crankshaft speed 1450 rpm
Weight 150 Kg
Dimensions 100x75x83 cm



The units come with the following equipment (standard configuration):

  • High pressure gun
  • 70cm high pressure lance
  • Flat jet nozzle
  • 10m high pressure hose 600 bar
  • Manual book



1 YEAR UNIT GUARANTEE OF UNLIMITED USE
