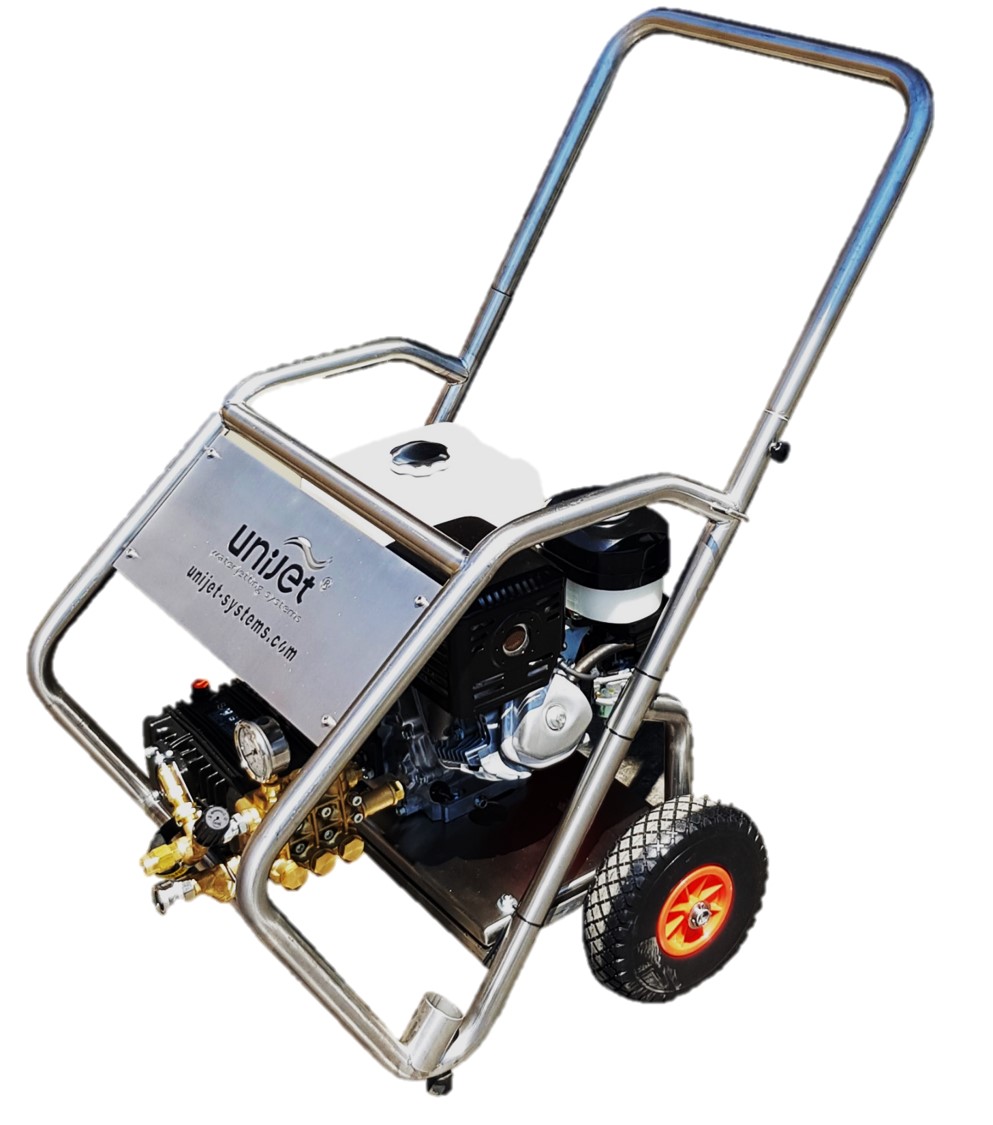

Unijet G 200 Bar - 10 Lpm ECO

Mobile waterjetting unit sandblasting and hot water compatibility up to 200 bar driven by Honda gasoline engine for professional use.



Unijet waterjetting applications up to 200 Bar:

  • Cleaning of buildings of dirt, mud, dust etc.
  • Surface cleaning, rock and marble cleaning , sidewalk, equipment and machinery washing, car washing etc.
  • Cleaning of fats and grease on conveyors.

Technical Characteristics

Engine design:

  • Four-stroke air cooled OHV petrol Honda engine
  • Horizontal shaft
  • Cast iron sleeve

Pump design:

  • Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
  • Pump max. water temperature at 45˚C
  • Thermal valve
  • Pump oil level indicator

 High pressure unit design:

  • Stainless steel 304L frame
  • Shock absorbing anti-vibration mounts
  • High pressure gauge for visual pressure monitoring with pressure snubber, absorbing vibration shocks and providing more accurate pressure readings
  • Inlet water filter for long service life of the pump
  • Certification of 45’ machine test run on max. operating pressure



Model 200G10
Max. operating pressure 200 bar
Max. water flow rate 10 lpm
Engine output power HONDA 6,5 HP / 5 KW
Plunger material Stainless steel
Pump head material Hardened brass
Motor speed 3600 rpm
Crankshaft speed 3600 rpm
Weight 70 Kg
Dimensions* 92x75x72 cm

 *Dimensions can alter according to customer needs.

The unit comes with the following equipment (standard configuration):

  • High pressure gun
  • 70cm high pressure lance
  • Flat jet nozzle
  • 10m high pressure hose 250 bar
  • Manual book



1 YEAR UNIT GUARANTEE
