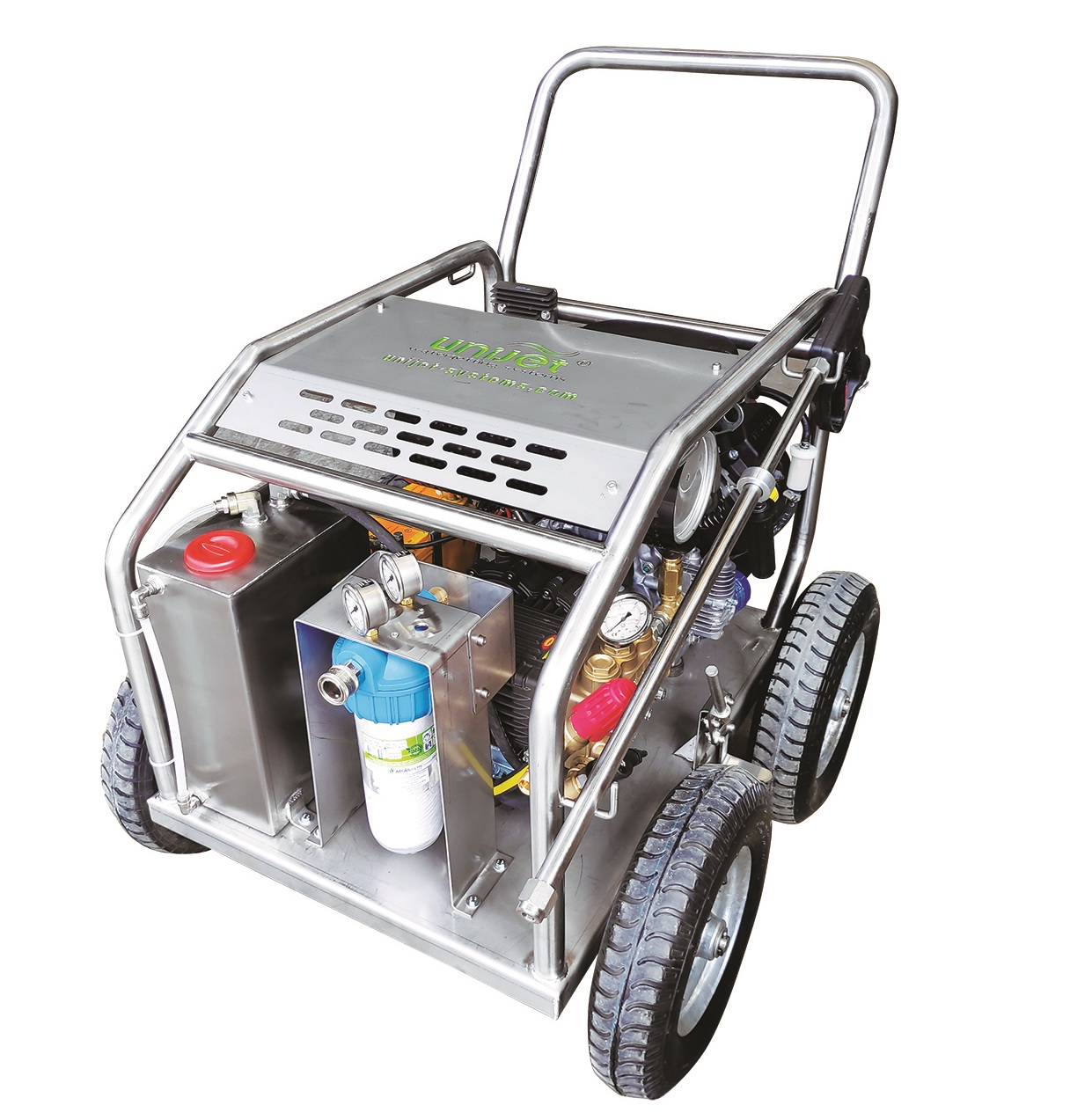

Unijet G 500 Bar - 15 Lpm

Unijet waterjetting applications up to 500 Bar:

• Surface preparation prior to painting. Road marking removal with sandblasting equipment or hot water application.
• Ship & boat cleaning, docks and general on board cleaning, tanks, mixers, containers refineries, chemical plants, food industry and pipe cleaning.
• Removal of marine growth, barnacles and rust (adjustable sandblasting).

Technical Characteristics

Engine design:

• Four-stroke, air cooled, petrol Honda engine, V
• Improved piston design for low operation noise
• ΟHV design for increased efficiency and optional power transfer

Pump design:

• Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
• Pump max. water temperature at 45˚C
• Thermal valve
• Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)
• Safety valve (set 10% above operating pressure) for pump protection against over-pressure
• Pump oil level indicator


High pressure unit design:

• Stainless steel 304L frame
• Shock absorbing anti-vibration mounts
• Fuel tank manufactured from stainless steel 304L 3mm with adequate capacity to keep the engine supported with level switch
• Gearbox with reduction ratio 1:2,2
• High pressure gauge for visual pressure monitoring with pressure snubber, absorbing vibration shocks and providing more accurate pressure readings
• 10-micron inlet water filter for long service life of the pump
• Inlet pressure switch against poor water flow
• Certification of 45’ machine test run on max. operating pressure

The unit comes with the following equipment (standard configuration):

• High pressure gun
• 70cm high pressure lance
• Flat jet nozzle
• 10m high pressure hose 600 bar
• Manual book

1 YEAR UNIT GUARANTEE
