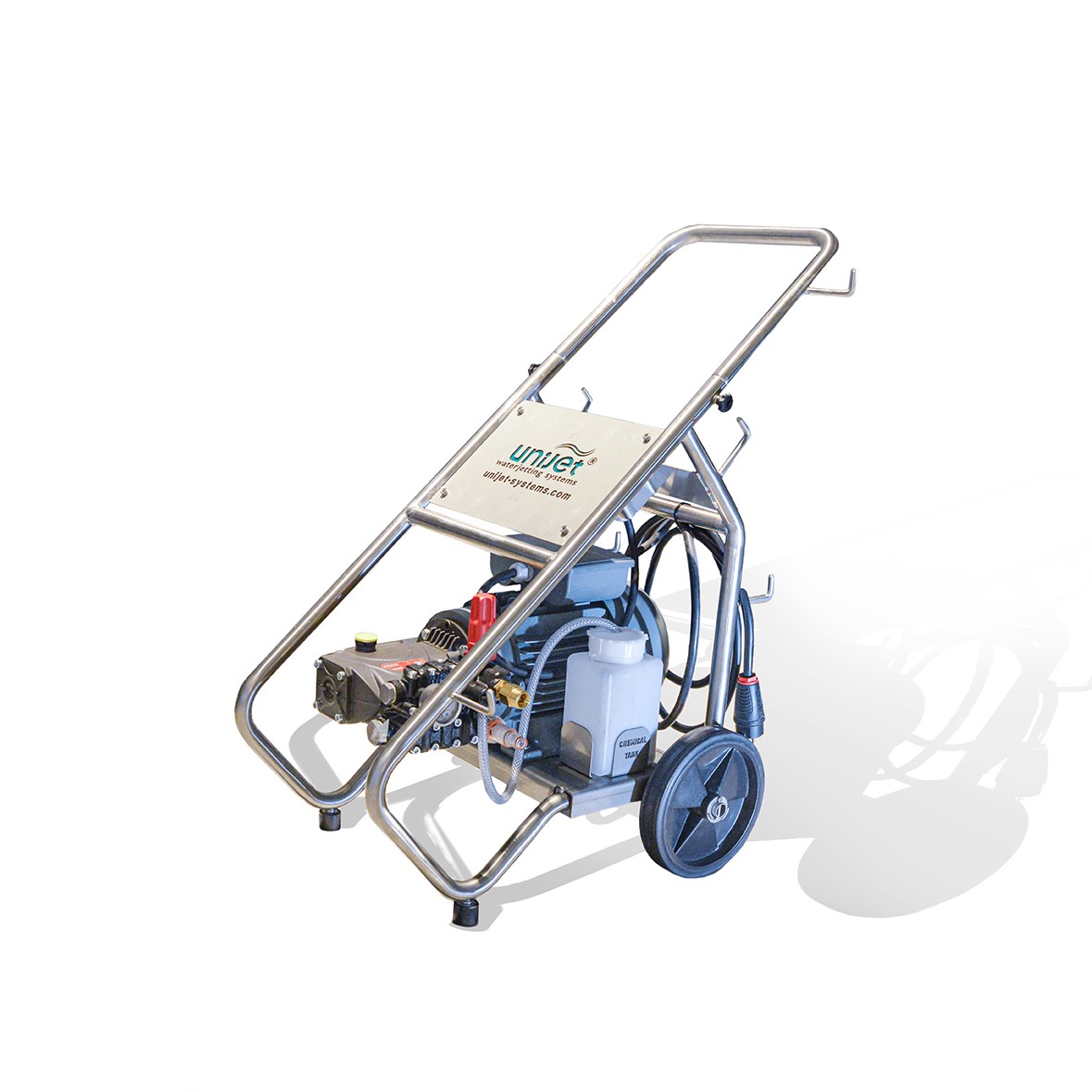

Waterjetting unit with sandblasting and hot water compatibility up to 160-180 bar, driven by an electric single-phase motor for the Shipping, Industrial and Construction sector.
UNIJET waterjetting applications:
Deep cleaning of buildings, Construction equipment and machinery washing, paint, and concrete removal,
Scaffolding cleaning, removal of concrete, old paint and plaster, silo, mortal pumps, concrete pipe
Cleaning, rock and marble cleaning, Sidewalk cleaning (removal of chewing gum with hot water),
Old paint and plaster removal (adjustable sandblasting), Graffiti removal (adjustable sandblasting)
Metal molding (hot water), metal machinery painting preparation, roof cleaning, tree peeling, etc
The machines are covered by a 2-year factory warranty with unlimited use.
Technical characteristics of UNIJET 160-180E8:
Stainless steel 304L frame
IP55 electric motor
Motor efficiency class IE2
Automatic star delta starter
Direct drive pump
Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
Pump oil level indicator
Pump max. water temperature at 45˚C
Thermal valve
Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)
Safety valve (set 10% above operating pressure) for pump protection against overpressure10-micron inlet water filter for long service life of the pump
Inlet pressure switch against poor water flow
High pressure gauge for accurate display readings
Certification of 45’ machine test run on max. operating pressure
| Model | UNIJET E 160- 180 |
| Max. operating pressure | 160 bar 180 bar |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Max. water flow rate | 8 lpm |
| Motor output power | 2,2 kW/3 HP 3 kW/4 HP |
| Plunger material | Ceramic |
| Pump head material | Hardened brass |
| Motor speed | 2.800rpm |
| Crankshaft speed | 2.800rpm |
The machine is delivered with the following standard equipment:
High pressure hose 10m
High pressure gun
High pressure lance
Waterjetting nozzle flat jet
Manual and book service
