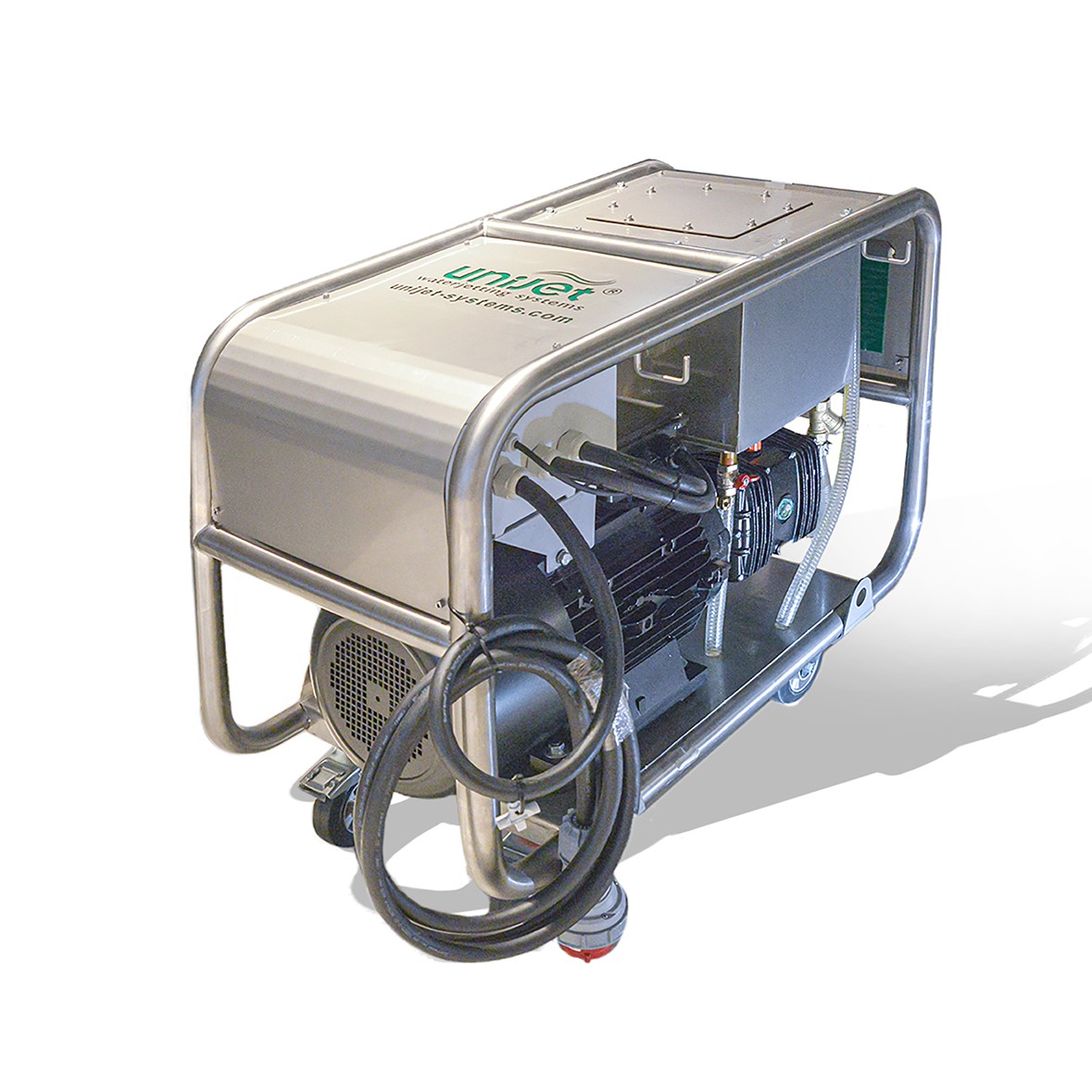

UNIJET E500-30

Waterjetting unit with sandblasting and hot water compatibility up to 600 bar, driven by an electric three phase motor for the Shipping, Industrial and Construction sector.

UNIJET waterjetting applications:

  • Deep cleaning of buildings, Construction equipment and machinery washing, paint, and concrete removal,
  • Scaffolding cleaning, removal of concrete, old paint and plaster, silo, mortal pumps, concrete pipe
  • Cleaning, rock and marble cleaning, Sidewalk cleaning (removal of chewing gum with hot water),
  • Old paint and plaster removal (adjustable sandblasting), Graffiti removal (adjustable sandblasting)
  • Metal molding (hot water), metal machinery painting preparation, roof cleaning, tree peeling, et.c

The machines are covered by a 2-year factory warranty with unlimited use.

Technical characteristics of UNIJET 500E30:

Stainless steel 304L frame
IP55 electric motor
Motor efficiency class IE1
Automatic star delta starter
Direct drive pump
Stainless steel crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
Pump oil level indicator
Pump max. water temperature at 45˚C
Thermal valve
Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)
Safety valve (set 10% above operating pressure) for pump protection against overpressure10-micron inlet water filter for long service life of the pump
Inlet pressure switch against poor water flow
High pressure gauge for accurate display readings
Certification of 45’ machine test run on max. operating pressure



Model 500E30
Maximum working pressure 500 bar
Maximum flow 30 lit/min
Engine 15 kW
Engine performance 20 hp
Maximum pump RPM 1450rpm
Weight 175 Kg
Dimension 100x75x83 cm


















Standard equipment
10m high pressure hose
High pressure gun
High pressure lance
Waterjetting nozzle flat jet
Manual and book service
