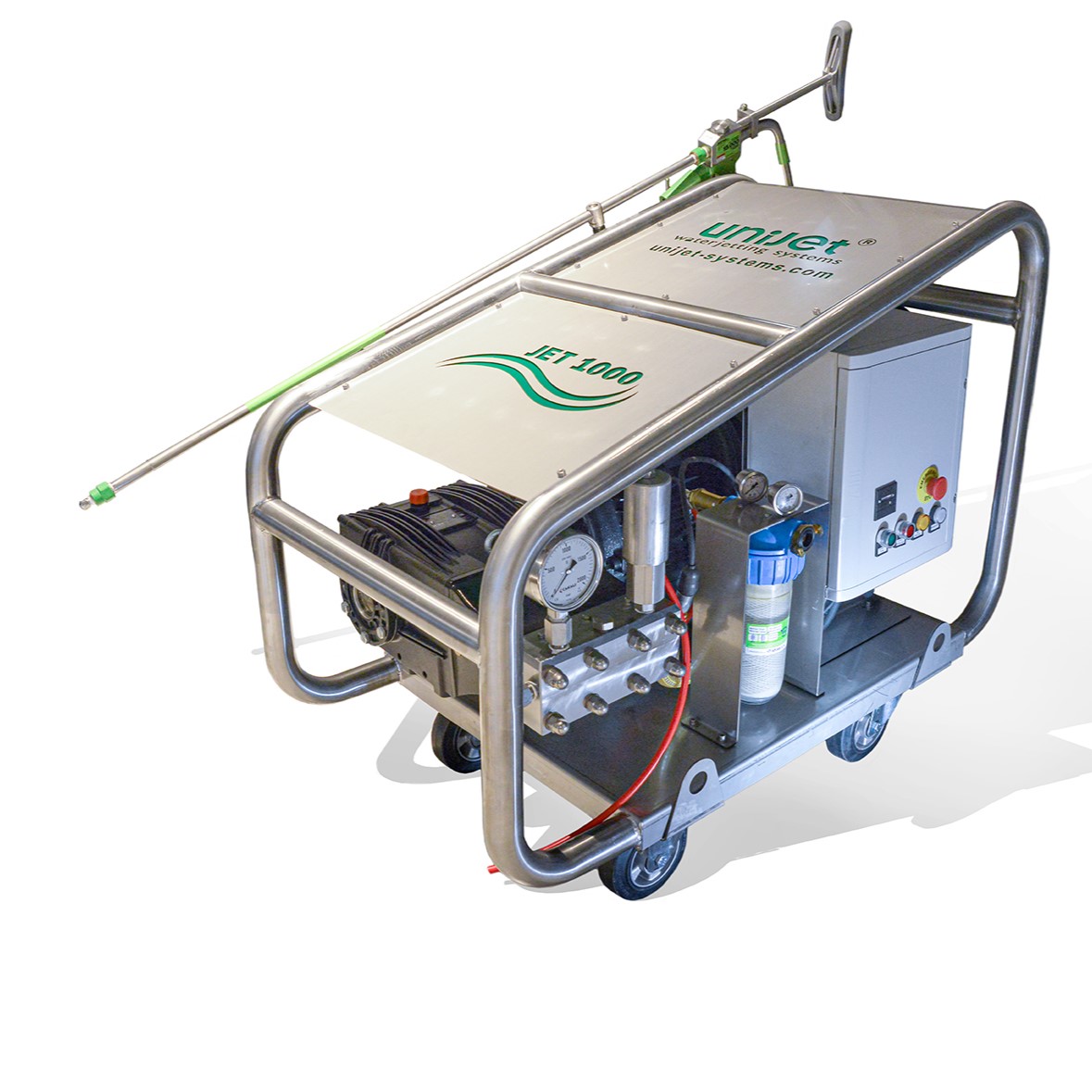

Unijet E 1000 Bar - 20 Lpm

Waterjetting unit with sandblasting and hot water compatibility up to 1000 bar, driven by an electric three phase motor for the Shipping, Industrial and Construction sector.

UNIJET waterjetting applications:

  • Deep cleaning of buildings, Construction equipment and machinery washing, paint, and concrete removal,
  • Scaffolding cleaning, removal of concrete, old paint and plaster, silo, mortal pumps, concrete pipe
  • Cleaning, rock and marble cleaning, Sidewalk cleaning (removal of chewing gum with hot water),
  • Old paint and plaster removal (adjustable sandblasting), Graffiti removal (adjustable sandblasting)
  • Metal molding (hot water), metal machinery painting preparation, roof cleaning, tree peeling, et.c


Technical characteristics of Unijet E 1000 Bar - 20 Lpm:

  • Stainless steel 304L frame
  • IP55 electric motor
  • Motor efficiency class IE1
  • Automatic star-delta starter
  • Direct drive pump
  • Reciprocating plunger pump, 3 tungsten-carbide plungers, stainless steel block-style head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings
  • Pump oil level indicator
  • Pump max. water temperature at 40˚C
  • Safety valve (set 10% above operating pressure) for pump protection against overpressure
  • Inlet water filter for long service life of the pump
  • Level switch to protect the pump from working without water
  • High pressure gauge for accurate display readings
  • Certification of 45’ machine test run on max. operating pressure

The machines are covered by a 2-year factory warranty with unlimited use.

Model Unijet E 1000 Bar - 20
Max. operating pressure 1000 Bar
Voltage 440 V
Frequency 60 Hz
Max. water flow rate 20 lpm
Motor output power 36 kW/48 HP
Plunger material Solid ceramic
Pump head material Stainless steel
Motor speed 1750 rpm
Crankshaft speed 1750 rpm
Weight 385 kg
Dimensions 115x80x90 cm



The machine is delivered with the following standard equipment:

  • High pressure hose 10m
  • High pressure gun
  • High pressure lance
  • Waterjetting nozzle flat
  • Manual and book service
