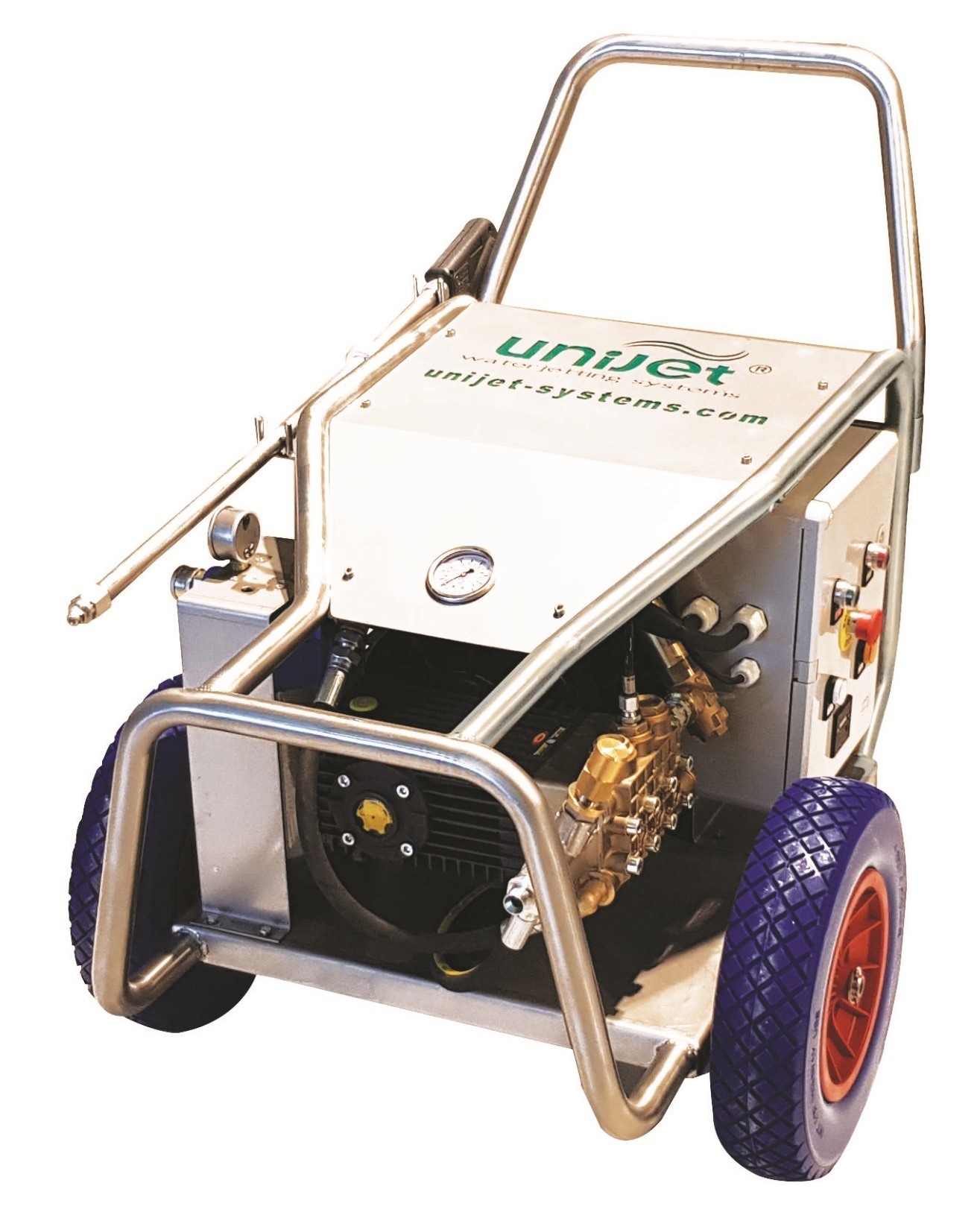

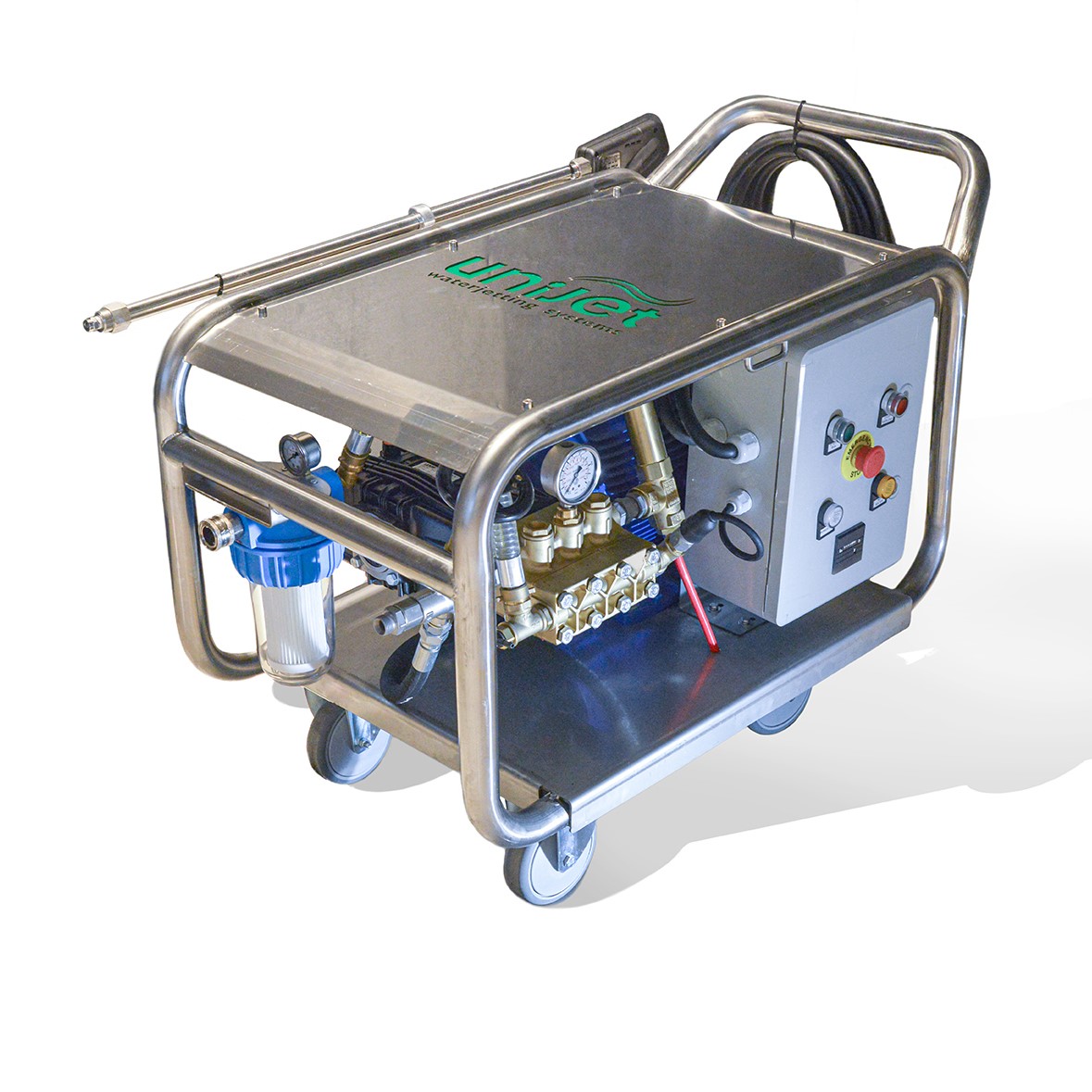

Unijet E 200 Bar - 40 Lpm - Underwater

Waterjetting unit with sandblasting and hot water compatibility up to 200 bar, driven by an electric motor for the Shipping, Industrial and Construction sector.

UNIJET waterjetting applications:

  • Deep cleaning of buildings, Construction equipment and machinery washing, paint, and concrete removal,
  • Scaffolding cleaning, removal of concrete, old paint and plaster, silo, mortal pumps, concrete pipe
  • Cleaning, rock and marble cleaning, Sidewalk cleaning (removal of chewing gum with hot water),
  • Old paint and plaster removal (adjustable sandblasting), Graffiti removal (adjustable sandblasting)
  • Metal molding (hot water), metal machinery painting preparation, roof cleaning, tree peeling, etc.

Technical characteristics of Unijet E 200 Bar - 40 Lpm - Underwater:

  • Stainless steel 304L frame
  • Motor efficiency class IE2
  • IP55 electric motor
  • Automatic star delta starter or Direct Online Starter (DOL)
  • Direct drive pump
  • Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
  • Pump oil level indicator
  • Pump max. water temperature at 45˚C
  • Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)
  • Safety valve (set 10% above operating pressure) for pump protection against over-pressure
  • Thermal valve
  • Inlet water filter for long service life of the pump
  • High pressure gauge for accurate display readings
  • Certification of 45’ machine test run on max. operating pressure

The machines are covered by a 2-year factory warranty with unlimited use.

Model Unijet E 200
Max. operating pressure 200 bar
Voltage 440V
Frequency 60 Hz
Max. water flow rate 48 lpm
Motor output power 18 kW/24 HP
Plunger material Ceramic
Pump head material Hardened brass
Motor speed 1750 rpm
Crankshaft speed 1750 rpm
Weight 150 kg
Dimensions 100x75x83 cm



The machine is delivered with the following standard equipment:

  • High pressure hose 10m
  • High pressure gun
  • High pressure lance
  • Waterjetting nozzle flat jet
  • Manual and book service
