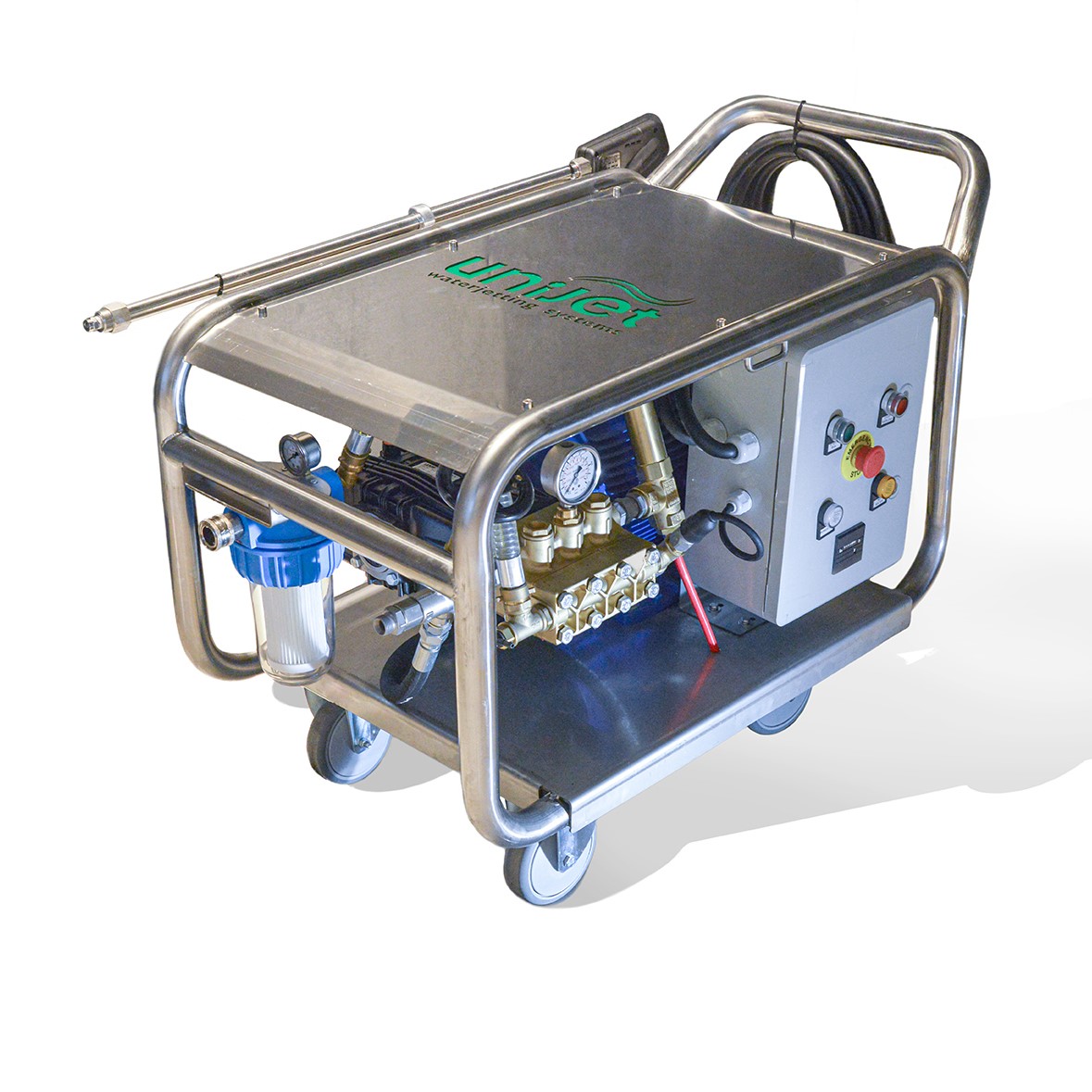

Unijet E 350 Bar - 23 Lpm

Waterjetting unit with sandblasting equipment and hot water compatibility up to 350 bar, driven by an electric motor for the shipping, industrial and construction sector.

UNIJET waterjetting applications:

  • Deep cleaning of buildings, Construction equipment and machinery washing, paint, and concrete removal,
  • Scaffolding cleaning, removal of concrete, old paint and plaster, silo, mortal pumps, concrete pipe
  • Cleaning, rock and marble cleaning, Sidewalk cleaning (removal of chewing gum with hot water),
  • Old paint and plaster removal (adjustable sandblasting), Graffiti removal (adjustable sandblasting)
  • Metal molding (hot water), metal machinery painting preparation, roof cleaning, tree peeling, et.c

Technical characteristics of Unijet E 350 Bar - 23 Lpm:

  • Stainless steel 304L frame
  • IP55 electric motor
  • Motor efficiency class IE2
  • Automatic star delta starter
  • Direct drive pump
  • Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
  • Pump oil level indicator
  • Pump max. water temperature at 45˚C
  • Thermal valve
  • Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)
  • Inlet water filter for long service life of the pump
  • Inlet pressure switch against poor water flow
  • High pressure gauge for accurate display readings
  • Certification of 45’ machine test run on max. operating pressure

The machines are covered by a 2-year factory warranty with unlimited use.

Model Unijet E 350
Max. operating pressure 350 bar
Voltage 380-400 V
Frequency 50 Hz
Max. water flow rate 23 lpm
Motor output power 15 kW/20 HP
Plunger material Ceramic
Pump head material Hardened brass
Motor speed 1450 rpm
Crankshaft speed 1450 rpm
Weight 175 kg
Dimensions 100x75x83 cm



The machine is delivered with the following standard equipment:

  • High pressure hose 10m
  • High pressure gun
  • High pressure lance
  • Waterjetting nozzle flat jet
  • Manual and book service
