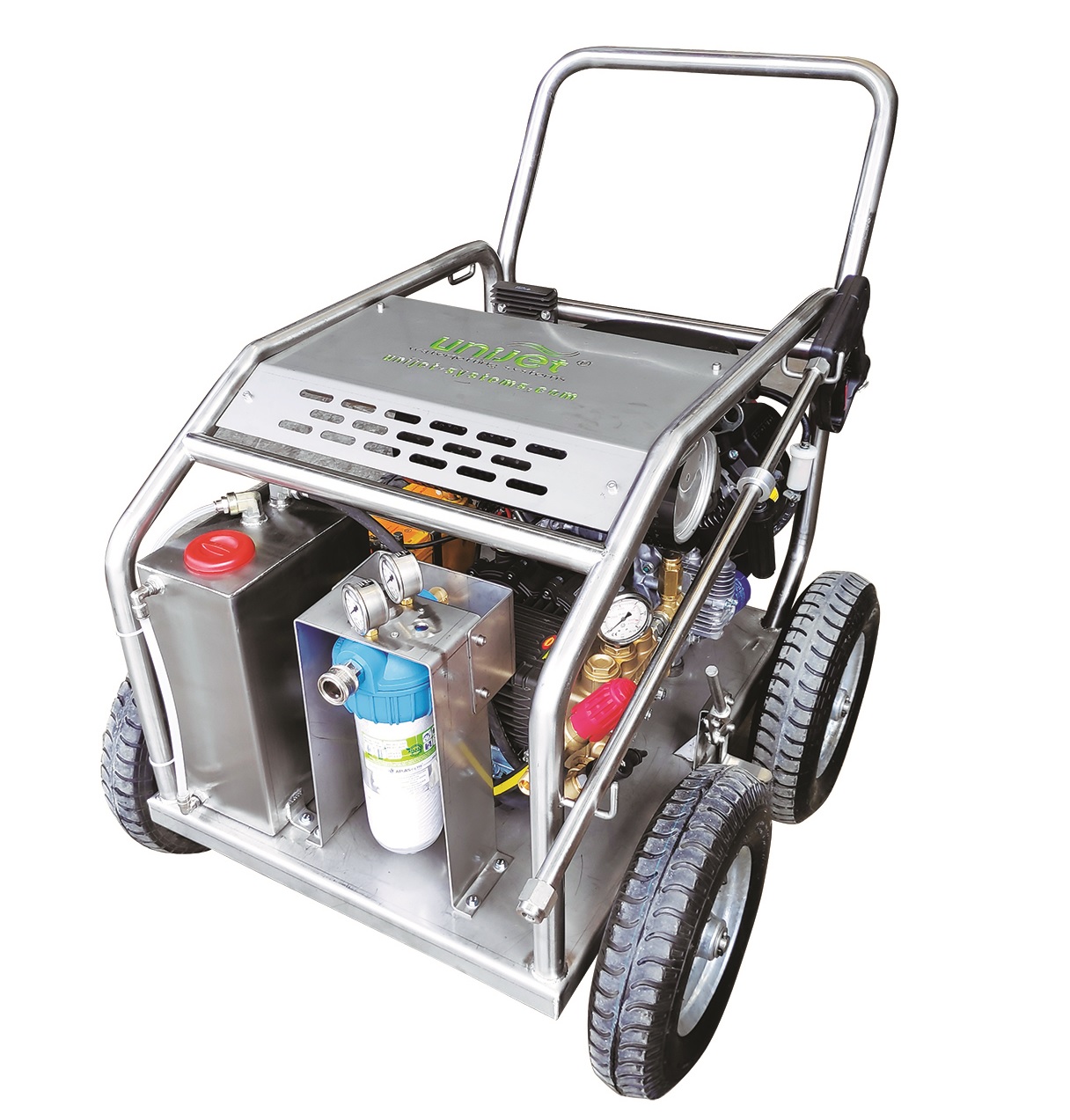

Unijet G 200 Bar - 40 Lpm Underwater

Unijet waterjetting applications up to 200 Bar:

• Cleaning of buildings of dirt, mud, dust etc.
• Surface cleaning, rock and marble cleaning , sidewalk, equipment and machinery washing, car washing etc.
• Cleaning of fats and grease on conveyors.

Technical Characteristics

Engine design:

• Four-stroke air cooled OHV petrol Honda engine
• Engine 90° V-twin design
• Electronic start-stop
• Electronic hour meter
• Horizontal shaft
• Cast iron sleeve

Pump design:

• Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
• Pump max. water temperature at 45˚C
• Booster pump

• Thermal valve
• Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)

• Safety valve (set 10% above operating pressure) for pump protection against overpressure

• Pump oil level indicator

 High pressure unit design:

• Stainless steel 304L frame

• Shock absorbing anti-vibration mounts

• Fuel tank manufactured from stainless steel 304L 3mm with adequate capacity to keep the engine supported with level switch
• Gearbox with reduction ratio 1:2,2
• 10-micron inlet water filter for long service life of the pump
• Pulsation dampener

• High pressure gauge for visual pressure monitoring with pressure snubber, absorbing vibration shocks and providing more accurate pressure readings
• Inlet pressure switch against poor water flow
• Certification of 45’ machine test run on max. operating pressure


 *Dimensions can alter according to customer needs.


The unit comes with the following equipment (standard configuration):

• High pressure gun
• 70cm high pressure lance
• Flat jet nozzle
• 10m high pressure hose 250 bar
• Manual book

1 YEAR UNIT GUARANTEE
